New TPT2
Data input and output terminal TTY/ANSIAllows sending and receiving text messages

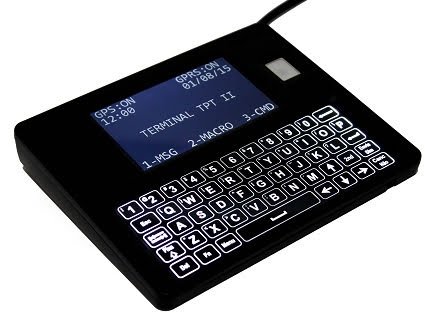

TPT2 - TTY/ANSI Data Input and Output Terminal!
Continuing the success of Nonus' tpt terminals, we are launching the tpt2 Terminal with a range of features and options that make it the best cost-effective choice in the market. The tpt2 comes with a 4.3" color display, allowing you to view up to 168 characters per screen. As optional features, the tpt2 offers a built-in barcode reader for reading the Danfe code on the invoice, biometric reader, and/or NFC/RFID Mifare reader for driver identification. The concept behind tpt2 is to be a product adaptable to the user's needs, allowing firmware development to make it fully compatible with the client's equipment, making it a unique product."Colorful Display
Colorful Display 4.3" with 168 characters per screen!
Biometric Reader
Biometric fingerprint reader for secure access!
Barcode Reader
UPC-A, UPC-E, 2 de 5, EAN-8, EAN-13, Código 128, EAN/UCC 128, Código 39, Código 93, Codabar 125
NFC Reader
Near Field Communication Identification
4.3" TFT LCD Color Display
Resolution:
480 x 272 pixels;
Characters:
168 characters per screen (8 lines x 21 characters)
Área visível:
98.48 mm (W) × 57.09 mm (H)
Processor
Processor:
ARM Cortex-M0+ @ 48MHz;
Flash:
128KBytes Flash (Expandable to 256KBytes)
SRAM:
16KBytes SRAM (Expandable to 32KBytes)
External Memory:
1MByte
Optional Features
Barcode Laser Reader:
Compatible with the following standards (UPC-A, UPC-E, 2 de 5 intercalado (padrão e industrial), EAN-8, EAN-13, Código 128, EAN/UCC 128, Código 39, Código 93, Codabar 125)
Biométric Reader:
User identification (Stores up to 200 fingerprints)
NFC/RFID Reader:
Compatible with Mifare 1k, 4k, Ultralight, and DesFire.
Standard ISO/IEC 14443-4 cards.
Standard ISO/IEC 14443-4 cards.
Other Features
Keyboard:
Capacitive Alphanumeric Keyboard with backlight
Built-in Speaker:
Playback of pre-recorded audio messages
Stand-by function:
Stand-by mode for power reduction;
Light Sensor:
Light sensor for display night inversion and backlight activation;
Communication Cable Guide:
Guide for fixing the communication cable in various positions

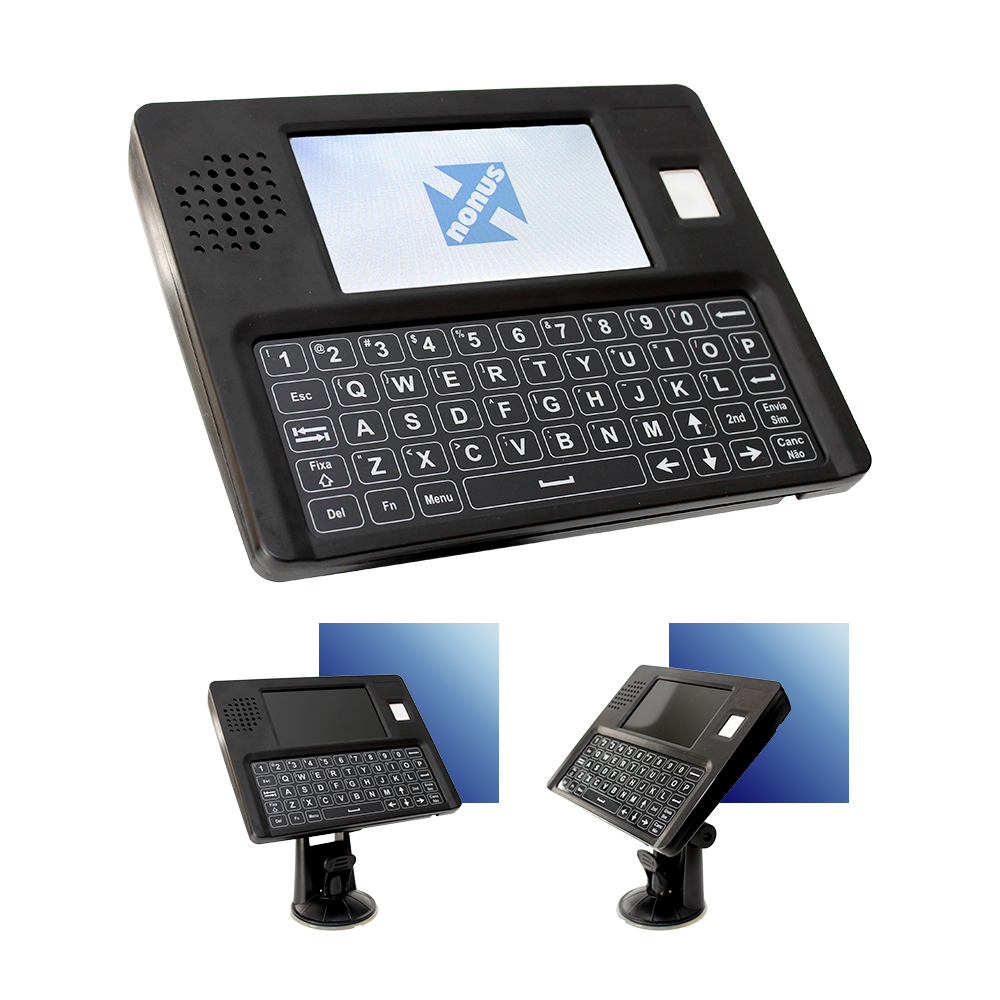

Mounting Support:
Support for fixation
Electrical/Mechanical Specifications
Power Supply:
9Vdc a 36Vdc;
Dimensions:
181 mm (W) x 145 mm (H) x 26 mm (D)
Weight:
300g.
Communication: RS-232
Default Serial Configuration:
RS-232
Baud Rate:
19200
Data Bits:
8
Parity:
None
Stop Bits:
1
* Adaptable product for various markets - new configurations and/or technical features can be added or removed at the customer's request.
Warranty
Warranty:
12 months Warranty
Download the Technical Manual for the TPT2 Terminal below. In it, you can find guidelines on installation and operation.
