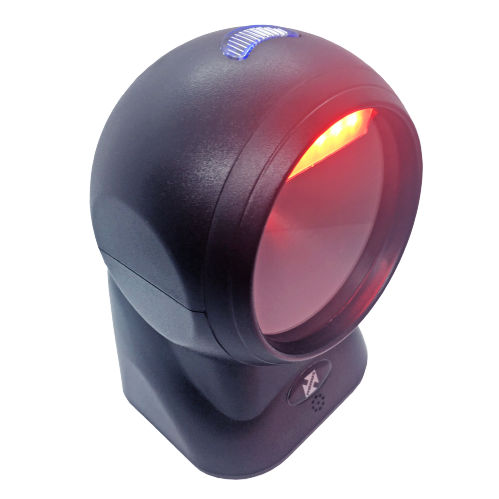

OMNI nonus 2D
Omnidirectional Fixed 2D and 1D Barcode ReaderReads QR Code, Data Matrix, and PDF417 codes
Fixed Omnidirectional 2D and 1D Barcode Reader
Ideal for any type of commerce, it performs precise and ultra-fast reading of QR Code, Data Matrix, and PDF 417 codes. Innovative technology capable of reading codes on screens (cell phones, monitors, notebooks, etc.). Reads 1D barcodes such as EAN-13, EAN-8, Code 128, Code 39, etc.Commercial Automation
By allowing various reading angles, it is ideal for retail, shops, pharmacies, and supermarkets
Pharmaceutical Chain
Applications for traceability throughout the pharmaceutical chain with two-dimensional code reading.
Brazilian Danfe
Capture of the access key to Danfe (Electronic Invoice Auxiliary Document).
Reading on Screen
Technology capable of reading codes on screens (cell phones, monitors, notebooks)
QR Code
New applications that require the reading of two-dimensional QR Code barcodes
Identification and Access Control
Control of employee access, events, and fairs
Important: This reader is not suitable for reading documents such as bank slips and utility bills (Internet Banking).
Operational Specifications
Lighting
RED Led
Printing Contrast Ratio
20%
Ambient Light:
0 to 70.000 Lux
Operating Temperature:
-20°C to 55°C
Storage Temperature:
-20°C to 60°C
Storage Temperature:
5% to 95% (non-condensing)
Supported 2D Barcode Standards:
QR Code, PDF417, Micro QR Code, Data Matrix
Supported 1D Barcode Standards:
EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on,
ISBN, UPC-A, UPC-E, Code 39, Code 39,
FullASCII, Code 93, Code 128, Codabar, Industrial
2 de 5, Intercalado 2 de 5, Matrix 2 de 5, GS1-128,
GS1 DataBar（RSS14）(Stacked), GS1 DataBar
Limited, Standard 25 and GS1 DataBar Expanded
Communication Interface:
USB
Mechanical Specifications
Dimensions:
15cm (length) x 9.5cm (width) x 10cm (depth)
Weight:
291g / 383g (with cable)
Impact Resistance:
Supports drops from up to 1.5m
Electrical Specifications
Power Supply:
5 VDC ± 5%
Standby Power Consumption:
193mA; Operation: 183mA
Resolution:
4 mils
* Adaptable product for various markets - new configurations and/or technical features can be added or removed at the customer's request.
Technical Support
Installation, Operation, and Configuration Manual
Download the Technical Manual for the Omni Nonus Reader below. In it, you can find instructions for installation and operation. Additionally, by using the QR codes provided in the manual, you can configure parameters such as enabling or disabling beep, setting the terminator as ENTER or TAB, and choosing between automatic or manual reading mode. If possible, print the manual using a high-resolution laser or inkjet printer.
