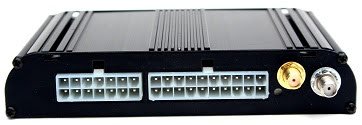

Nonus Tracking Module

Communication via GPRS packet networks

Real-time vehicle monitoring and tracking system

Real-time vehicle monitoring and tracking system.

The Tracking Module manufactured by Nonus is a real-time vehicle monitoring and tracking system that allows the vehicle's location to be tracked every 10 seconds on a digital vector map of streets and highways in Brazil, displayed on the computer screen. It also enables bidirectional messaging between the vehicle and the company's monitoring station or risk management center. Manufactured in Brazil by Nonus, the tracking module utilizes the GPS (Global Positioning System) satellite system for vehicle location and GPRS (GSM data network) for data exchange between the vehicle and the monitoring station. Communication through the GPRS packet network (data transmission network) provides broad coverage, low cost, and enables effective real-time control over the vehicle. This is a significant benefit, especially for transportation companies, distribution logistics, and fleet management.

Safe and Compact

In terms of safety, the tracking module significantly reduces the vehicle theft rate because it monitors every 10 seconds. Therefore, the last position of the vehicle will be stored in the tracker's HUB, even if the vehicle is hidden underground or in garages. The GPS accuracy is less than 30 meters. Another important factor is the small size of the tracker, which is installed inconspicuously inside the vehicle.

Monitoring

Monitoring and tracking of vehicles!

Real-time!

Vehicle location every 10 seconds

Security of your fleet

Safety and precision, latest vehicle positions stored.

Compact size

Installed inconspicuously inside the vehicle

Features
Warranty

Power supply:

12 or 24 V DC (10 to 30 V DC);

Receiver:

12-channel GPS

Internal modem:

Cinterion BGS3;

CPU:

Risc 8 bits 15Mips;

Flash Memory:

512 Kbytes;

Antenna:

GSM adhesive slim

GPS Antenna:

Active, magnetic base

Speed Control:

Odometer;

Ignition status control:

On/Off

Emergency button:

Yes

Digital inputs:

General Purpose

Digital outputs:

Negative logic 1A

Simple contact outputs:

NA - 5A;

1 reversible simple contact output:

Message terminal:

Alphanumeric keypad / LCD display

Temperature:

0 to 60 °C;

Status transmission:

Every 10 seconds to HUB

Data communication:

Bidirectional

Customizable operating program:

Yes

RS 232 serial channel:

LCD keypad / PDA / Notebook / Printer / reader

Case:

Extruded Aluminum with high mechanical resistance.

* Adaptable product for various markets - new configurations and/or technical features can be added or removed at the customer's request.

Warranty:

12 months warranty
