HandbanK ECO Office

Semi-automatic reader for payment slips and/or checks


Convenience and speed for reading payment slips and/or checks

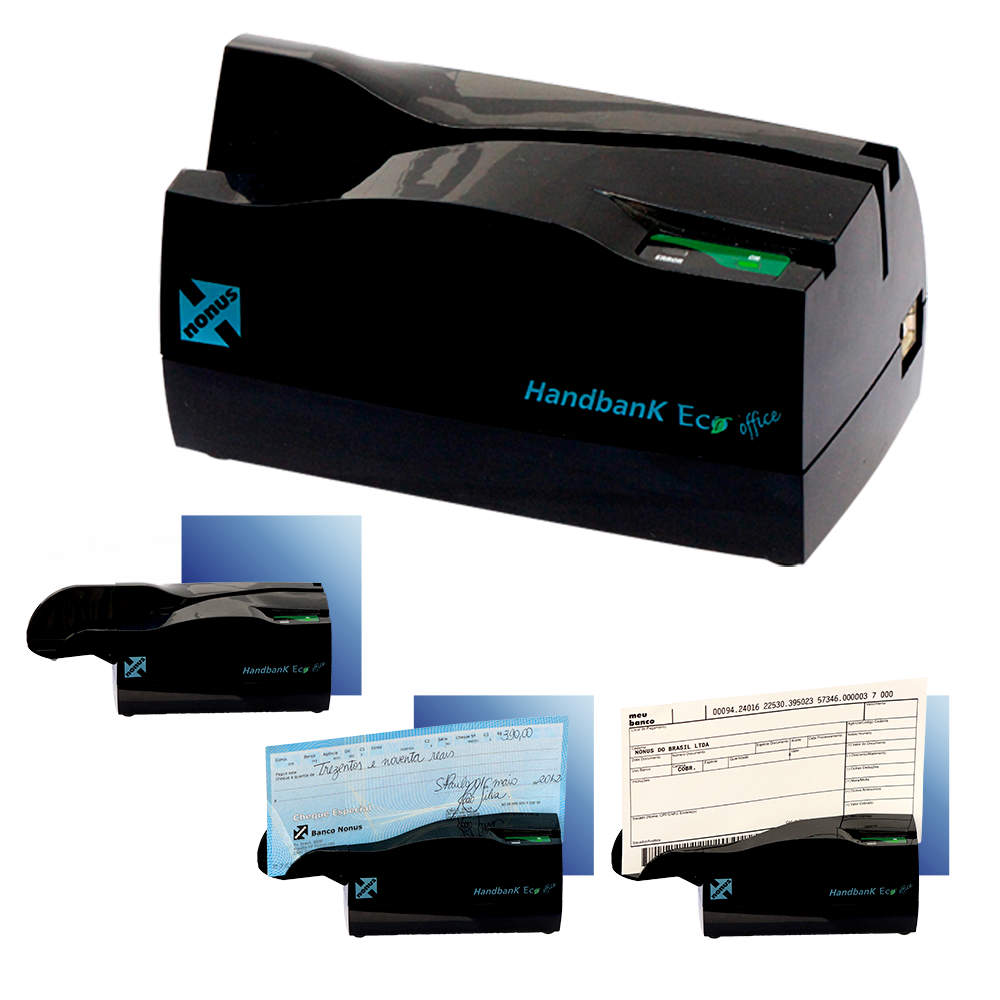

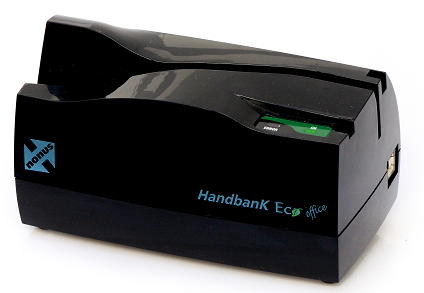

HandbanK ECO Office - Semi-automatic reader for payment slips and/or checks! The Handbank Eco Office is a semi-automatic reader for checks and/or barcode that features a motorized document feeding system, providing much more comfort to the operator. Combined with the lower cost in its category, the Handbank Eco Office offers great durability due to the new technologies and components used in the reader.

Technology in service of the environment!

Eliminates the need for power sources and batteries, just connect it to a USB port, saving over 80% of the energy consumed by previous models.

Checks and Payment Slips

Captures Interleaved 2 of 5 Barcodes (Febraban), Code 39, and CMC-7.

handbank eco office

Semi-Automatic

The HandbanK Eco reader is a semi-automatic reader for CMC-7 and/or Barcode that features a motorized feeding system, providing faster and more comfortable operation.

ROHS Compliant

The HandbanK complies with the European Union's ROHS directive, which prohibits the use of lead and other environmentally harmful substances in its manufacturing.

HandbanK Eco Office 30 HandbanK Eco Office 10 HandbanK Eco Office 20
Bank Slip Reader Check and Bank Slip Reader Check Reader
Barcode Standards: Interleaved 2 of 5 (Febraban) and Code 39
Check Standard: CMC-7 ECMA Standard
Communication: USB
Compatibility: Windows 10, Windows 8, Windows 7, Vista, XP, Server, 98, and ME
Linux
MAC OSx
Power Supply: (USB Models) - No need for an external power source, power is directly supplied through the USB cable
Power Supply (Serial/PS2 Keyboard Models): External Power Supply Dual Voltage 110/220V
Power Consumption: 2.2W
Dimensions: 125mm (L) x 70mm (W) x 72mm (H)
Weight: 290g
Operational Specifications
Dimensions:
Height 72.44mm, Width 125mm, Depth 70mm
Weight:
393g, 0.393 Kg
Power Supply:
Bus Powered - USB - 5V
Power Consumption:
Approximately 2.2W
Communication:
USB 2.0 - FULL SPEED - 12Mbs
Compatibility:
Windows 10, Windows 8, Windows 7, Vista, XP, Server, 98, ME, Linux and Mac OSx
Driver/Compatibility:
USB HID Human Interface Device Windows, Linux, MAC OSX
Programming:
Through Cards
System
Semi-Automatic - Through Slot Reader (Slot)
Feed Speed:
0,54 m/s
CMC-7 Code Standards:
CMC-7 ECMA Standard, Febraban Interleaved 2 of 5 Barcode Standard, Code 39 Barcode Standard
Paper Weight:
50 to 240g/m
Operating Temperature:
0°C to 40°C and relative humidity of 10% to 90% non-condensing
Storage Temperature:
-30°C to 60°C and relative humidity of 10% to 90% non-condensing

* Adaptable product for various markets - new configurations and/or technical features can be added or removed at the customer's request.
Warranty
Warranty:
12-month warranty.

Reduced Environmental Impact!

The HandbanK Eco Office is a product designed to reduce environmental impact: all the necessary energy is supplied through the USB port. By not requiring an external power source, there is a reduction in electronic components, and with fewer accessories, the packaging itself has been reduced. Fewer cables and accessories make connection/disconnection and transportation very simple operations.

Technical Support

Reader Brochure

Download the HandbanK ECO Office Reader brochure below. It contains technical specifications and other information about equipment applications.

Configuration Cards

Download the HandbanK ECO Office Configuration Cards below.
