qr202d
Barcode ScannerCapable of reading both 2D codes (QR Code and Data Matrix) and 1D codes (EAN13/Code 128).
2D (QR Code and Data Matrix) and 1D (EAN13/ Code 128) barcode reader

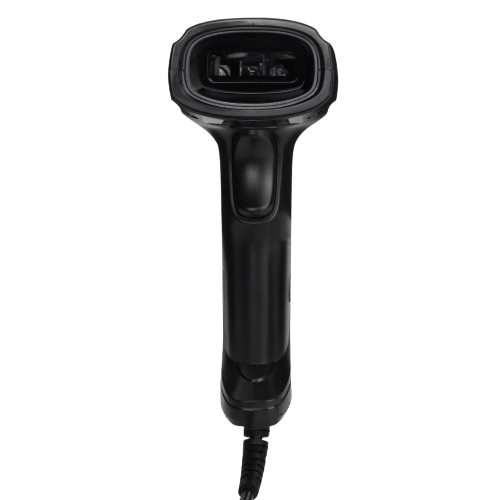

The Nonus QR202D barcode reader allows reading both the new 2D codes (QR Code and Data Matrix) and the traditional 1D codes such as the EAN13 of commercial products and the 128 code found in Danfes. The new QR202D reading system greatly facilitates the operation, allows the reading of printed codes, and also reads directly on the screen of cell phones, monitors and notebooks.Pharmaceutical Chain
Applications for traceability throughout the pharmaceutical chain with the reading of the two-dimensional code.
Brazilian DANFE
Capturing the access key of Danfe (Auxiliary Document of the Electronic Invoice).
Commercial Automation
Retail, shops, pharmacies, and supermarkets.
qrcode
New applications that require reading the two-dimensional QR Code barcode.
Restaurants
Restaurants, for order control.
Identification and Access Control
Employee access control, events, and fairs.
Important: This reader is not suitable for reading documents such as bank slips and utility bills (Internet Banking).
Operational Specifications:
Sensor:
CMOS 640 x 480
Illumination:
LED (624nm)
Print Contrast Ratio:
Greater than or equal to 25%
Operating Temperature:
-20℃ a 50℃
Storage Temperature:
-40℃ a 60℃
Relative Humidity:
5% to 95% (non-condensing)
2D Decoding:
QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
1D Decoding:
UUPC/EAN and UPC/EAN supplements, Code 128, Code 39, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Code 39 full ASCII, Code 128, Code 93, Code 11, ISBN, ISSN, MSI, China Post, Plessey, RSS, GS1 DataBar (RSS14)
Operating Modes:
Manual
Communication Interface:
USB
Mechanical Specifications:
Dimensions:
163 x 65 x 91 mm (length x width x depth)
Weight:
175g
Impact Resistance:
Withstands drops of up to 1.80m on concrete floor
Electrical Specifications:
Input Power:
DC +5V
Power Consumption:
80 mA (operation) / 30 mA (stand-by)
Reading Performance:
Resolution:
4 mil (0,10 mm)
Reading Speed:
500 scans/second
* Adaptable product for various markets - new configurations and/or technical features can be added or removed at the customer's request.
Warranty
Warranty:
12 months warranty.
Technical Support
Installation, Operation, and Configuration Manual.
Please download the QR202D Reader Technical Manual below. It contains instructions for installation and operation. Additionally, using the QR codes provided in the manual, you can configure parameters such as enabling or disabling the beep, setting the terminator as ENTER or TAB, and selecting automatic or manual reading mode. If possible, print it using a high-resolution laser or inkjet printer.
